How does a Sub-Zero ice maker actually work?

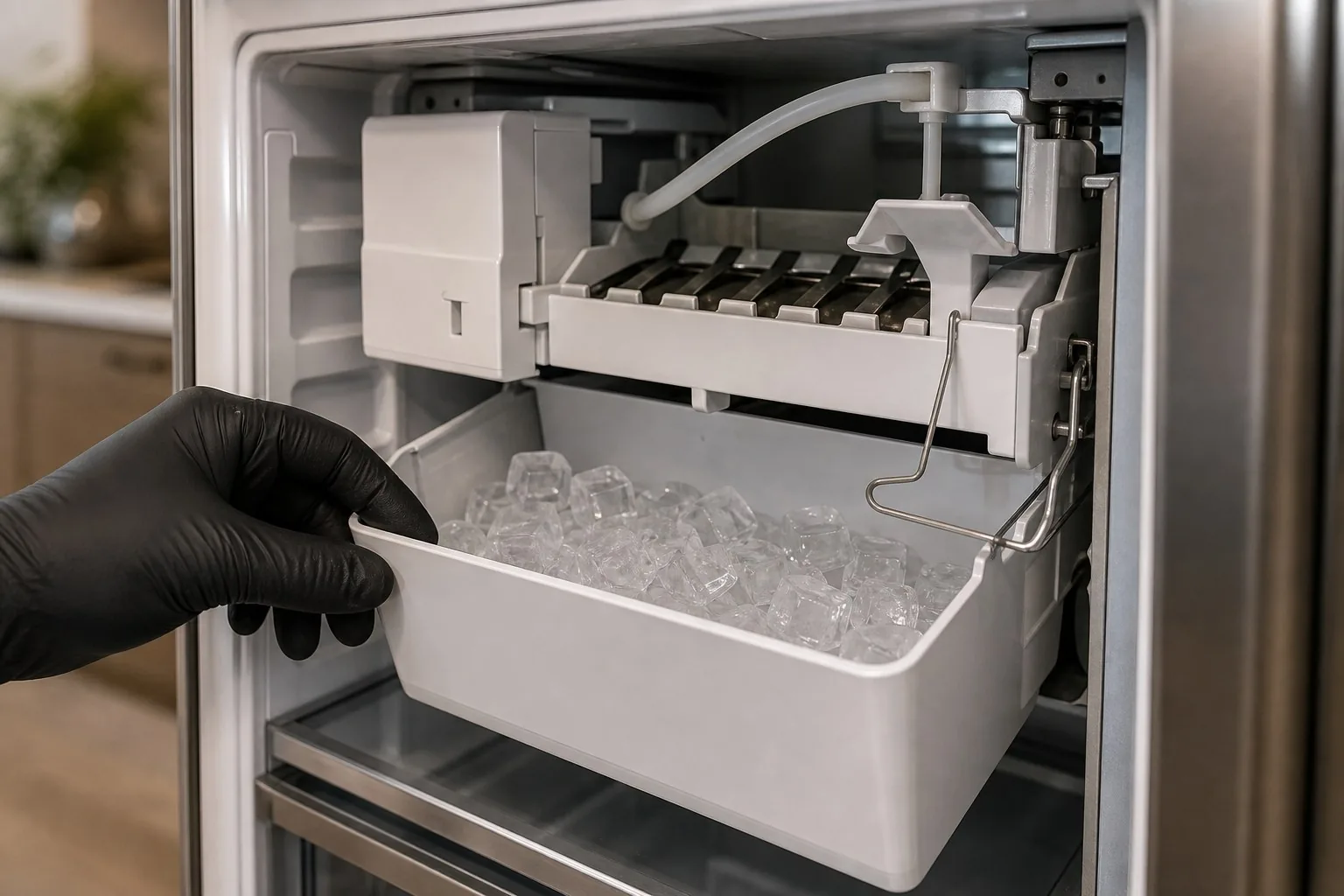

It fills a mold with water from your home supply, freezes it solid in the freezer compartment, then harvests the cubes into the bin and refills. Two conditions have to be true for that cycle to run: the freezer must be cold enough, and water must reach the mold at full flow. A wire shut-off arm rides on top of the ice in the bin and switches the maker off when the bin is full — so the very first thing to check is whether that arm is simply raised.
| Symptom or sign | Likely cause | What we do |
|---|---|---|
| No ice at all, arm down, freezer cold | Frozen fill tube or failed inlet valve | Trace the seeping valve, replace it so the tube stops re-icing |
| Small, hollow or partial cubes | Low water flow — tired filter, half-open valve, kinked line | Restore full flow, replace filter or inlet valve |
| Slow or stalled production | Freezer running above ~5°F | Verify setpoint and cooling; check for a defrost or fan fault |
| Ice maker dead after the bin filled | Wire shut-off arm left raised | Lower the arm to the on position |
| Cleared the fill-tube ice, locked up again | Inlet valve seeping water that refreezes | Replace the valve or correct the fill geometry |
Real causes, in order
- Shut-off arm raised — the arm left in the up position turns the ice maker off entirely.
- Freezer running warm — above about 5°F the mold won’t freeze a full cycle.
- Water supply closed or kinked — a partly shut valve or pinched line starves the mold.
- Clogged water filter — a filter past its ~6-month life restricts flow and shrinks cubes.
- Frozen fill tube — the tube that feeds the mold ices over and blocks water entirely.
- Failed inlet valve or ice-maker module — the part itself no longer fills or harvests.
Why does the order matter?
Because the first four causes are owner-checkable and account for most “no ice” calls, so working top-down saves a service visit. A frozen fill tube and a failed inlet valve or module need a technician, because thawing the tube without correcting the cause just lets it refreeze. If your freezer itself is running warm, the ice problem is downstream of a cooling fault — see Sub-Zero not cooling, which often traces to the same airflow and defrost path covered in our Sub-Zero troubleshooting guide.
When should I call for ice-maker service?
Call once the owner-checkable items are ruled out and there’s still no ice. If the arm is down, the freezer is at or below 5°F, the filter is fresh, the water valve is open, and you still have no ice after a full 24 hours, the inlet valve, fill tube, or ice-maker module needs diagnosis. We test water pressure and the module against spec so we replace the part that actually failed, not the whole assembly. Most ice-maker repairs fall in the non-sealed band — see Sub-Zero repair cost — and the work fits within our wider Sub-Zero repair coverage across the Bay Area.
Quick answers
- Why is my Sub-Zero ice maker not making ice?
- The common causes are the wire shut-off arm left in the raised (off) position, a freezer warmer than 5°F, a shut-off or kinked water line, a clogged water filter, or a frozen fill tube. Confirm the arm is down and the freezer is cold first, then look at water supply and the filter.
- What temperature does a Sub-Zero freezer need to make ice?
- The ice maker needs the freezer at or below about 5°F to cycle reliably. If the freezer is running warm, ice production slows or stops before anything is broken. Verify the freezer setpoint and give the cabinet a full day to reach temperature before assuming a part failed.
- How long after a reset before a Sub-Zero makes ice again?
- After restoring power, changing the filter, or thawing a fill tube, allow roughly 24 hours. The first harvest is often thin or hollow, so discard the first batches. If you still have no ice after a full day with the arm down and a cold freezer, it needs a diagnostic.
- Could a clogged water filter stop my Sub-Zero ice maker?
- Yes. A water filter past its service interval restricts flow enough to starve the ice maker and the dispenser. Sub-Zero filters are typically changed about every six months. Replace the filter, then run water through the system and wait 24 hours before deciding anything else is wrong.
Read the cube, not just the bin
What hollow or undersized cubes are telling you
The shape of the ice is a flow gauge. Full, clear cubes mean water and freeze timing are healthy; thin, hollow, or partial cubes mean the mold isn't filling completely. That usually traces to a tired filter, a half-open supply valve, a kinked line, or a fill tube starting to ice — a flow problem, not a frozen-mold problem.
The owner-checkable five
- Lower the wire shut-off arm fully into the on position
- Verify the freezer reads at or below about 5°F
- Trace the supply line for a closed valve or a tight kink
- Swap a filter that's past its roughly six-month life
- Power-cycle, then leave it untouched for 24 hours and discard the first batches
Quick triage for a Sub-Zero ice maker not making ice
- Check the shut-off armMake sure the wire ice-level arm is in the down (on) position — raised means the ice maker is switched off.
- Confirm the freezer is coldVerify the freezer is at or below about 5°F; ice production stalls if it's running warm.
- Check water and filterConfirm the supply valve is open and the line isn't kinked, then replace a filter that's past its six-month interval.
- Wait 24 hours, then bookPower-cycle and allow a full day; if there's still no ice with the arm down and a cold freezer, book a diagnostic.
Frequently asked questions
Why is my Sub-Zero ice maker not making ice?
The common causes are the wire shut-off arm left in the raised (off) position, a freezer warmer than 5°F, a shut-off or kinked water line, a clogged water filter, or a frozen fill tube. Confirm the arm is down and the freezer is cold first, then look at water supply and the filter.
What temperature does a Sub-Zero freezer need to make ice?
The ice maker needs the freezer at or below about 5°F to cycle reliably. If the freezer is running warm, ice production slows or stops before anything is broken. Verify the freezer setpoint and give the cabinet a full day to reach temperature before assuming a part failed.
How long after a reset before a Sub-Zero makes ice again?
After restoring power, changing the filter, or thawing a fill tube, allow roughly 24 hours. The first harvest is often thin or hollow, so discard the first batches. If you still have no ice after a full day with the arm down and a cold freezer, it needs a diagnostic.
Could a clogged water filter stop my Sub-Zero ice maker?
Yes. A water filter past its service interval restricts flow enough to starve the ice maker and the dispenser. Sub-Zero filters are typically changed about every six months. Replace the filter, then run water through the system and wait 24 hours before deciding anything else is wrong.
Why is my Sub-Zero making small or hollow ice cubes?
Small, hollow or partial cubes point to low water flow — a tired filter, a partly closed supply valve, a kinked line, or a fill tube starting to ice over. Restore full water flow and replace the filter; if cubes stay undersized, the inlet valve or fill system needs service.
